Standing Seam Metal Roof

Fairfield Metal offers a variety of metal panel systems, allowing for a diverse building envelope solution.

1.75″ Snap Lock Panel

1.5” Mechanical Seam Panel

1.5” Mechanical Seam Panel

Snap Lock panels are installed with a concealed floating clip system that allows expansion and contraction locking without special tools – excellent wind uplift resistance. They can be specified as an accent or a total roof system on various applications. Great for Architectural and light structural applications. Available in Steel and Al

Snap Lock panels are installed with a concealed floating clip system that allows expansion and contraction locking without special tools – excellent wind uplift resistance. They can be specified as an accent or a total roof system on various applications. Great for Architectural and light structural applications. Available in Steel and Aluminum, 1.5″ panel – stiffening ribs optional. Available Nail Strip for the economic, one-piece locking system, eliminating the need for clips.

1.5” Mechanical Seam Panel

1.5” Mechanical Seam Panel

1.5” Mechanical Seam Panel

Commercial Grade Mechanical Seam Panel is mechanically seamed and installed with a floating or fixed clip system. Ideal for low slope, light commercial, and residential projects. It can be curved to meet radius panel applications, typically used as an accent feature for various applications. Available in Steel and Aluminum with a watertight warranty.

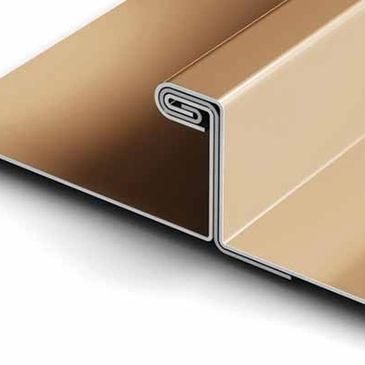

2” Mechanical Seam Panel

1.5” Mechanical Seam Panel

2” Mechanical Seam Panel

Commercial Grade Structural Mechanical Seam panel is mechanically seamed and installed with a floating or fixed clip system. Ideal for low slopes, wide spans, and open purlin systems. 2" structural rib can span open purlins up to 5' – depending on load restriction. Available in Steel and Aluminum with a watertight warranty.

Downloads

FM 1.75" Snap Lock Panel Details (pdf)

Download

FM 1.5" Mech. Seam Panel Details (pdf)

Download

FM 2" Mech. Seam Panel Details (pdf)

Download

FM 1.75" Snap Lock Panel Drawing (pdf)

Download

FM 2" Mech. Seam Panel Drawing (pdf)

Download

FM 1.5" Mech. Seam Panel Drawing (pdf)

Download

Standing Seam Color Chart (pdf)

Download

Roofing Edge Metals & Accessories

We offer a complete line of the perimeter edge products and accessories. Our systems have been designed for superior aesthetics while keeping strength and performance in mind. Additionally, our products come in 12” lengths to reduce labor. Fairfield Metal can customize coping, trims and flashing to meet any unique design.

Coping

Roof Drainage & Accessories

Coping

Tested for reliable long-term performance and longevity, easy to install with the option of no exposed fasteners. Available with a continuous front cleat for easy installation with convenient 12' lengths in a wide variety of colors and finishes. Meets any wind load requirement. Custom miters available – welded or riveted. UL ANSI/SPRI ES-1 tested profiles available.

Fascia

Roof Drainage & Accessories

Coping

HD Fascia is available with an aluminum extruded anchor bar pre-punched for single-ply applications in a wide variety of colors and finishes. Available with a continuous front cleat for easy installation in many face heights and lengths (to meet the needs of any project condition). Custom and radius capabilities available. UL ANSI/SPRI ES-1 tested profiles available.

Roof Drainage & Accessories

Roof Drainage & Accessories

Roof Drainage & Accessories

Commercial gutters are fabricated in many sizes to meet your project's needs with a wide variety of drainage accessories in a wide variety of colors. Custom fabricated scuppers and collector boxes – custom lengths and the ability to roll form 7" gutter on site.

FM Coping System Profiles (pdf)

Download

FM Fascia system Profiles (pdf)

Download

FM Gutter Profiles (pdf)

Download

FM Coping System ES-1 (pdf)

Download

FM Fascia System ES-1 Profiles (pdf)

Download

FM Flashing Accessories (pdf)

Download

FM UL Certificate of Compliance (pdf)

Download

FM ES1 Certificate (pdf)

Download

FM Custom Flashing (pdf)

Download
